Low Series Resistance Quartz Stability
Rugged, Hermetic, Low-profile SMD7.5X3.5 Case
The R433T2 is a true one-port, surface-acoustic-wave (SAW) resonator in low-profile SMD case. It provides reliable, fundamental-mode. quartz frequency stabilization of fixed-frequency transmitters operating at 433.92 MHz. The R433T2 is designed specifically for remote-controls and wireless security transmitters. Operating in the Europe underETS11-ETS 300 220 and in Germany under FTZ 17 TR 2100.
Absolute Maximum Ratings
Rating | Value | Units |
CW RF Power Dissipation (See Typical Test Circuit) | +0 | dBm |
DC Voltage Between Any Two Pins (Observe ESD Precautions) | ±30 | VDC |
Case Temperature | -40 to +85 | ℃ |
Electrical Characteristics
Characteristics | Sym | Notes | Minimum | Typical | Maximum | Units |
Center Frequency (+25℃) Absolute Frequency Tolerance from 433.920MHz | fc |
2,3,4,5 | 433.845 | 433.995 | MHz | |
Δfc | ±75 | KHz | ||||
Insertion Loss | IL | 2,5,6 | 1.5 | 2.0 | dB | |
Quality Factor Unloaded Q 50Ωloaded Q | QU |
5,6,7 | 12.800 | |||
QL | 2.000 | |||||
Temperature Stability Turnover Temperature Turnover Frequency Frequency Temperature Coefficient | TO |
5,7,8 | 24 | 39 | 54 | ℃ |
fO | fc+2.7 | KHz | ||||
FTC | 0.037 | ppm/℃2 | ||||
Frequency Aging Absolute Value during the First Year | IfAI | 1 | ≦10 | ppm/yτ | ||
DC Insulation Resistance between Any Two Pins | 5 | 1.0 | MΩ | |||

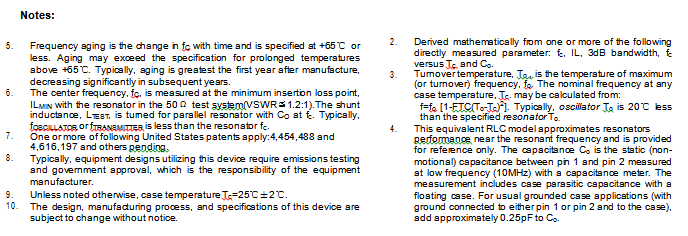

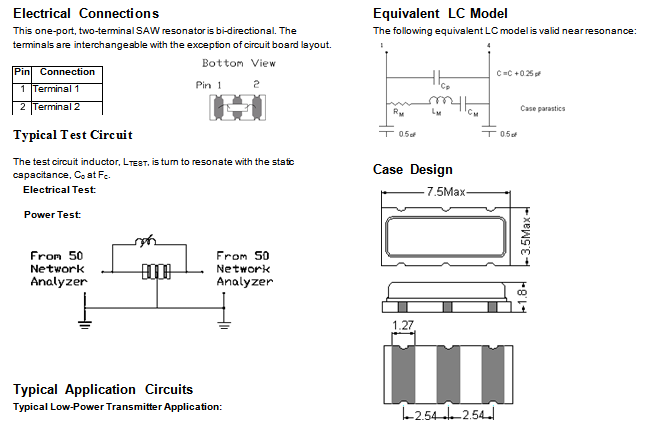

RF Equivalent RLC Model Motional Resistance Motional Inductance Motional Capacitance Pin 1 to Pin 2 Static Capacitance | RM |
5,7,9 | 18 | 26 | Ω | |
LM | 86.0075 | μH | ||||
CM | 1.56417 | pF | ||||
CO | 5,6,9 | 1.7 | 2.0 | 2.3 | pF | |
Transducer Static Capacitance | CP | 5,6,7,9 | 1.7 | pF | ||
Test Fixture Shunt Inductance | LTEST | 2,7 | 78 | nH | ||
Lid Symbolization (in Addition to Lot and/or Date Code | LR433T2 | |||||

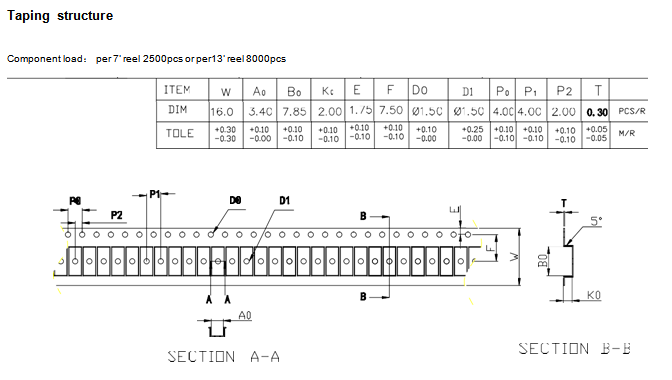

CAUTION: electrostatic Sensitive Device, Observe precautions for handling.
